Видеокамера за наблюдение 15CC25DNV
Арт.№: 39938
1 от 2
Информация

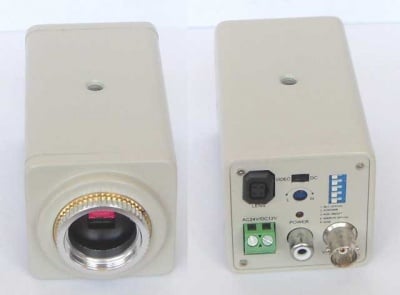

Цветна видеокамера 15-CC25DNV 1/3" CCD SONY SUPER HAD, 420TV lines, PAL 537x597, 0,05Lux, AUDIO изход. Захранване 12VDC или 24VAC. Размери 50x50x114mm. Без захранващ адаптор, стойка и обектив.
Colour / Monochrome SONY Super HAD CCD IR Sensitive Camera DC12V / AC 24V
Feature
1/3" Colour SONY Super HAD CCD
420 TV lines, 0.05 Lux
C/CS lens mount
Auto iris video / DC drive
Auto white balance (AWB)
Auto gain control (AGC)
Back light compensation (BLC)
Video and Audio output
Dual power input DC12V / AC24V
NTSC or PAL system
Type Colour / Monochrome
Signal System NTSC / PAL
Picture Up Device 1/3" SONY Super HAD CCD
Picture Elements NTSC: 510(H) x 492(V) / PAL: 500(H) x 582(V)
Horizontal resolution 420 TV Lines
Mini Illumination 0.05 Lux
Vertical Frequency NTSC: 60 HZ – PAL: 50 HZ
Scanning System 2:1 Interlace
S/N Ratio More than 50dB
Electronic Shutter NTSC: 1/60~1/120,000 sec /
PAL: 1/50~1/120,000 sec
White Balance ATW / AWB
Back Light Compensation On/Off Switchable
Gain Control On/Off Switchable
Gamma 0.45
Lens Driver DC Driver / Video Driver
Video Output 1 Vp-p Composite Video ( 75 ohm )
Audio Output 2 Vp-p Max
Power Supply DC12V / AC24V
Power Consumption 150mA
Dimension 50(W) x 50(H) x 114(L) mm
Storage Temperature -30° C~+60° C
Operating Temperature -10° C~+45° C
Feature
1/3" Colour SONY Super HAD CCD
420 TV lines, 0.05 Lux
C/CS lens mount
Auto iris video / DC drive
Auto white balance (AWB)
Auto gain control (AGC)
Back light compensation (BLC)
Video and Audio output
Dual power input DC12V / AC24V
NTSC or PAL system
Type Colour / Monochrome
Signal System NTSC / PAL
Picture Up Device 1/3" SONY Super HAD CCD
Picture Elements NTSC: 510(H) x 492(V) / PAL: 500(H) x 582(V)
Horizontal resolution 420 TV Lines
Mini Illumination 0.05 Lux
Vertical Frequency NTSC: 60 HZ – PAL: 50 HZ
Scanning System 2:1 Interlace
S/N Ratio More than 50dB
Electronic Shutter NTSC: 1/60~1/120,000 sec /
PAL: 1/50~1/120,000 sec
White Balance ATW / AWB
Back Light Compensation On/Off Switchable
Gain Control On/Off Switchable
Gamma 0.45
Lens Driver DC Driver / Video Driver
Video Output 1 Vp-p Composite Video ( 75 ohm )
Audio Output 2 Vp-p Max
Power Supply DC12V / AC24V
Power Consumption 150mA
Dimension 50(W) x 50(H) x 114(L) mm
Storage Temperature -30° C~+60° C
Operating Temperature -10° C~+45° C
