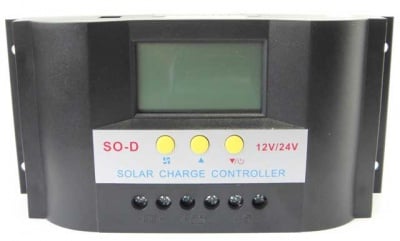

SOLAR CONTROLLER 30A

Features:
Visual LCD graphic symbol
Brief key operation
Grade auto-switch of system voltage
Intelligent PWM charging mode
Auto-temperature compensation
Adjustable charging and discharging parameter
Settable working modes of loads
Accumulative function of charging and discharging AH
Remote monitoring function
Protection for battery back discharging
Protection for battery low voltage
Over-loading and short-circuit protection
Battery reversed protection
Delayed auto-restart after over-load protection

Specification:
Rated working voltages: 12, 24 and 48V
Installable maximum cable: 7# AWG (16mm?)
Rated working current: 30A
Working temperature: -10 to 60°C
Voltage of solar panels: 50/100V
Storage temperature: -30 to 70°C
Float charging voltages (settable): 13.8, 27.6 and 55.2V
Temperature requirement: 90% and no condensation
Low voltages protection (settable): 10.7, 21.4 and 42.8V
Low voltages recovery (settable) 12.5, 25.0 and 50.0V
Distance of installation holes: 60 x 178mm to ?5
No load loss: >30mA
Loop voltage drop: >170mV
Charging mode: PWM
Temperature compensation: -4mV/cell/°C
Dimension: 90 x 188 x 48mm
Weight: 360g
