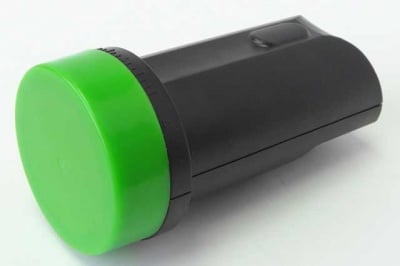

Сателитен конвертор SINS40
Арт.№: 40507
1 от 1
Информация
Универсален сателитен конвертор IDLB-SINS40-OOECO-OPP LOW BAND INPUT 10,7-11,7GHz, OUTPUT 950-1950MHz, LO: 9,75GHz. HIGH BAND INPUT 11,7-12.75GHz...
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.1 dB (ULN+) Typ. (0.7dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 85 dBc / Hz Max.
Conversion Gain 56 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 11.0 ~ 14.0 V
Control Signal Cb (Horizontal polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 100 mA Max. @ 11 ~ 20V
Operating Temperature -30 °C ~ +60 °C
Output Impedance 75OM
Output Connector F-type (Female)
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.1 dB (ULN+) Typ. (0.7dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 85 dBc / Hz Max.
Conversion Gain 56 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 11.0 ~ 14.0 V
Control Signal Cb (Horizontal polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 100 mA Max. @ 11 ~ 20V
Operating Temperature -30 °C ~ +60 °C
Output Impedance 75OM
Output Connector F-type (Female)
