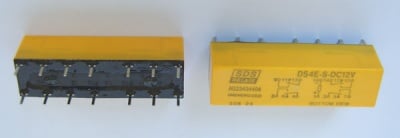

Реле 12V/2A DS4E-S

* Type : Miniature Relay
* Relay Construction : Non-Latching
* Contact Arrangement : 4PDT
* Coil Voltage DC : 12V
* Coil Current : 16.67mA
* Contact Form : 4 Form C
* Mounting Style : Through Hole
* Packaging : Box/Case
* Operating Temp Range : -40C to 70C
* Package / Case : DIP
* Voltage Rating (VDC) : 220V
* Voltage Rating (VAC) : 250V
* Dropout Volt (Min) : 1.2VDCV
* Coil Resistance : 720Ohm
* Pick-up Voltage (Max) : 8.4VDC
* Maximum Power Rating : 60W/125VA
* Operate Time : 3ms
* Contact Current Rating : 2A
* Pin Count : 14
* Termination Style : PC Pin
* Contact Material : Ag/Au Clad
* Coil Suppression Diode : No
* Push To Test Button : No
* LED Indicator : No
* Seal : Sealed
* Product Height (mm) : 9.9mm
* Product Depth (mm) : 9.9mm
* Product Length (mm) : 35.24mm

RELE-12V/2A DS4E-S min-29
