Измервателен уред AX-201 AXIOMET

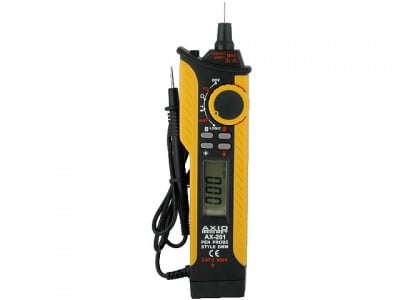

Meter type AX-201 digital multimeter
Features:
* autoranging
* auto power-off
* LED illumination of measurement area
* HOLD function
* pen-type
* backlit display
* permanently connected test leads
* tests logic state of TTL circuits
* diode and continuity test with buzzer
* universal
* overflow indicator
* low battery indicator

Display type LCD 3,5 digit, 13mm
Sampling 3 x/s
DC voltage measuring range 200m/2V/20V/200V/600V
DC voltage measuring accuracy ±(0,5% + 2 digits)
AC voltage measuring range 2V/20V/200V/600V
AC voltage measuring accuracy ±(0,8% + 3 digits)
DC current measuring range 20m/200mA
DC current measuring accuracy ±(1,2% + 3 digits)
AC current measuring range 20m/200mA
AC current measuring accuracy ±(1,5% + 5 digits)
Resistance measuring range 200OM/2k/20k/200k/2M/20MOM
Resistance measuring accuracy ±(1,2% + 3 digits)
Diode test 0,5mA, 1,5V
Continuity test acoustic signal for R<50OM
Overall dimensions (H x W x D) 230 x 57 x 30 mm
Weight with battery 182 g
Power supply 1 battery 9V 6F22
Safety EN61010: CAT II 600V
Equipment set of test leads

IZM AX201 AXIOMET AX-201
