Амперклещи MS2600

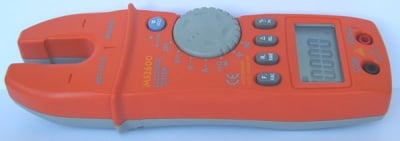

GT-MS2600 open jaw technology clampmeter up to 200 AAC

The GT-MS2600 is an open jaw technology meter for
measuring AC current up to 200 A and AC/DC voltage,
capacitance, frequency and resistance.
Backlit display and small dimensions enable to
operate in hard conditions.
Housing with compartment for measuring leads tips.

Features:
- wire diameter, max. 12 mm
- backlit LCD display
- autoranging/manual range selection
- DATA HOLD function
- REL relative measurement function (differential measurement)
- continuity and diode test with buzzer
- capacitance and frequency measurement
- auto power off after 30 minutes inactivity
- low battery indicator

Characteristics:
Display : LCD 3,75 digit (3999 max)
Sampling : 2,5 x/s
AC Current : 200 A
Accuracy : ±3%+3 digits
DC Voltage : 4 / 40 / 400 / 1000 V
Accuracy : ±0,7% +1 digit
AC Voltage : 4 / 40 / 400 / 700 V
Accuracy : ±0,8% +5 digits
Capacitance : 40 n / 400 n / 4 µ / 40 µF
Accuracy : ±4,0% +10 digits
Frequency : 40 / 400 Hz / 4 k / 40 k / 100 kHz
Accuracy : ±2,0% +1 digit
Pulse width : 0,1%... 99,9%
Resistance : 400 oHm / 4 k / 40 k / 400 k / 4 M / 40 MoHm
Accuracy : ±1,2% + 4 digits
Continuity test : buzzer at R<30
Dimensions : 192 x 68 x 43 mm
Weight : 272 g
Supply : battery 9V type 6F22
Safety : CAT III 600V

Standard equipment:
- soft case with strap
- set of test leads

IZM-AK MS2600 GT-MS2600
